Extension Ladders, rope operated

According to EN 1147 and British Standards

Our ladders have been designed using the latest technology and materials to meet the specific needs of UK fire and rescue departments. The user gets a very stable and easy-to-handle ladder that is light and complies with the BS EN 1147 standard.


All ladders are equipped with a cable and have a rope brake and can be adapted to your specific needs.

UK-TE-13.5 Extension Ladder - 3-Part
UK-TE-13.5

Type UK-TE Aluminium Extension Ladder 3-Part, rope operated

Tested and manufactured according to EN 1147 and BS

  • Built with 28 mm reinforced square-profile rungs that are milled and welded to the beams
  • Side mounted slide guide allows for smooth and easy extension with minimal force needed
  • Built with an automatic rope brake for additional safety
  • Suitable for a maximum load of 3 persons
    eingeschoben  ausgeschoben
Model No. Number of Rungs Length Weight
    folded extended approx.
UK-TE-10.5 3 x 14 4,40 m 10,50 m 60 kg
UK-TE-12.5 3 x 18 5,70 m 12,50 m 89 kg
UK-TE-13.5 3 x 20 6,00 m 13,50 m 92 kg

UK-DE-10.5 Extension Ladder - 2-Part
UK-DE-10.5

Type UK-DE Aluminium Extension Ladder 2-Part, rope operated

Tested and manufactured according to EN 1147 and BS

  • Built with 28 mm reinforced square-profile rungs that are milled and welded to the beams
  • Side mounted slide guide allows for smooth and easy extension
  • Built with an automatic rope brake for additional safety
  • Suitable for a maximum load of 3 persons
    eingeschoben  ausgeschoben
Model No. Number of Rungs Length Weight
    folded  extended approx.
UK-DE-9 2 x 18 5,50 m 9,00 m 43 kg
UK-DE-10 2 x 20 6,00 m 10,00 m 47 kg
UK-DE-10.5 2 x 21 6,30 m 10,50 m 52 kg

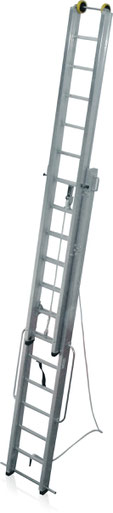

TYPE UK-DEC-5.5 Cadet-Trainings ladder
UK-DEC-5.5

TYPE UK-DEC Cadet-Trainings ladder 2-part, rope operated

In the same design as our larger ladders, we also offer a lightweight, sturdy and user-friendly 2-piece extension ladder with cable, which is equipped with several practical side handles.

  • Max-Load: 3-man
  • Length: 6 m or 5.5 m
  • Handles: top, middle, bottom
  • Wall running wheels at the upper end of the sliding part
  • cable brake
  • spring machines
  • The ladder can be easily separated into two individual ladders
Model No. Number of Rungs Length
UK-DEC-5,5 2 x 12 5,5 m
UK-DEC-6 2 x 13 6,0 m
UK-DEC-7 2 x 15 7,0 m
