Aluminium Scaling Ladders

JUST Scaling Ladders are characterized by their impeccable workmanship and versatility. The broad variety of accessories we carry makes these ladders a popular companion in firefighting operations.



Made from high quality alloyed aluminium, the square-profile rungs are welded into the milled beams, ensuring a secure hold. Our ladders also use an intuitive locking mechanism which makes connecting and disconnecting the ladder parts extremely simple and timely.



To correspond with the new DIN addition, all ladders are equipped with insulated and anti-slip plastic rung covers.

Scaling ladders in use as a hose bridge

Various Applications

Scaling Ladders as leaning ladder

● Leaning Ladder

The classic use of the Modular Scaling Ladders with a maximum ladder length up to 8,4 m.



2 variations:

 - 4x FE-106 module combined with a 2-rung attachment (FE-102 or FE-107)

 - 3x FE-106 module combined with FE-105 base part


Scaling Ladders as A-frame ladder

● A-Frame Ladder

The F-104 Connection Platform accessory can be used to combine 2 or 4 Scaling Ladder modules to form an A-frame. This can be used with the attached hook to rescue a person from a manhole or as a hose bridge.


Scaling Ladders as roof ladder

● Roof Ladder

With the patented F-120 Roof Hook, the Modular Scaling Ladder becomes a roof ladder in just a few easy steps. Compact storage as well as quick and simple installation, makes the roof hook a unique product which is exclusively manufactured by JUST Leitern AG.


Scaling Ladders as truck saver

● Truck Saver

The FG-106 extension can be used in combination with the Scaling Ladder modules to create a rescue platform. The resulting platform can be used to rescue people from crashed vehicles. For more information please follow this link.

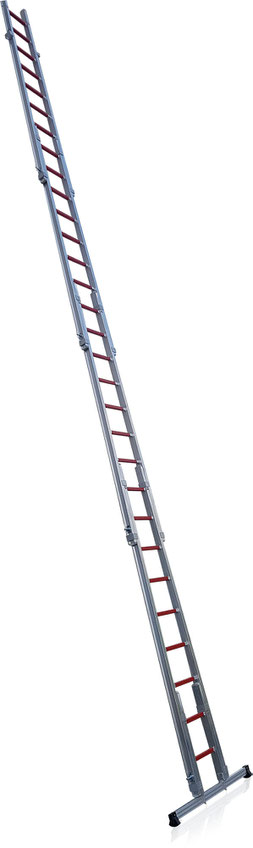

4x FE-106 with FE-102
Scaling Ladders as straight ladder

Aluminium Scaling Ladder

Tested and manufactured according to EN 1147 and DIN Supplement 1 standards

  • Built with interchangeable, insulated, anti-slip plastic rung covers
  • Made with 28 mm corrugated square-profile rungs
  • Can be combined with all popular models
  • Suitable for a maximum load of 2 persons
Model No. Product approx. Weight Length
FE-105 Base Module 9-runged 8,5 kg 2,66 m
FE-106 Attachment Module 7-runged 8,0 kg 2,66 m
FE-102 Attachment Module 2-runged with stabiliser bar 4,5 kg 0,85 m
FE-107 Attachment Module 2-runged 2,0 kg 0,74 m
FE-104 Connection Platform 5,0 kg
F-120 Roof Hook 9,3 kg
FW-100R-046 Roof Hook with a hinging spike hook 8,0 kg
