INDUSTRIAL - Multipurpose Ladders

53-010 Combination Ladder (Length C)
53-010 (Length C)

TYPE 53 Aluminium Combination Ladder 3-part

Tested and manufactured according to ÖNORM EN 131 standards

  • Multifunctional; can be used as a step ladder, free-standing ladder, as well as a double and triple section extension ladder
  • Built with heavy-duty guide brackets
  • Stabiliser bar used for firm positioning while in use (see image)
  • Includes galvanized chain opening restraint
  Länge A Länge B Länge C
Model No. Length A Length B Length C Stabiliser Bar Approx. weight
53-006   ○ 1,95 m 2,70 m 4,49 m 0,8 m 14,0 kg
53-007   ○ 2,23 m 3,26 m 5,05 m 0,8 m 16,0 kg
53-008   ○ 2,51 m 3,82 m 5,62 m 1,0 m 18,0 kg
53-009   ○ 2,79 m 4,38 m 6,18 m 1,0 m 19,0 kg
53-010    ● 3,07 m 4,66 m 7,00 m 1,0 m 25,0 kg
53-012    ● 3,63 m 5,78 m 8,74 m 1,2 m 29,0 kg
53-014    ● 4,19 m 6,90 m 10,34 m 1,2 m 32,0 kg

○ ... includes plastic-coated semi-automated steel rung hooks on the upper section and plastic-coated steel rung hooks on the lower section

● ... includes plastic-coated semi-automatic rung hooks on both upper and lower sections, as well as wall-running wheels for smooth and easy extension



The ladder is also available without the 3rd part (Type 54)

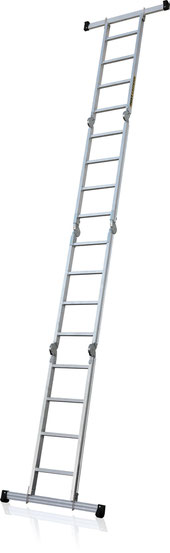

75-016 Aluminium Folding Ladder (length D)
75-016 (Length D)

TYPE 75-000 Aluminium Folding Ladder

Tested and manufactured according to ÖNORM EN 131 standards

  • Uses minimal space during transportation and storage
  • Built with galvanized steel latching joints (see image)
  • Anti-slip rungs allow for safe and comfortable standing
  • Includes plastic anti-slip safety feet and top end-caps to ensure firm positioning during use
  • Stabiliser bars located on both ends of the ladder for maximum stability
  Länge A Länge B Länge C Länge D Transportgröße
Model No. Ladder Length in m Transport Dimensions Stabiliser Bar Weight
  A B C D L x B x H in meter   approx.
75-012   ○ 1,03 1,87 2,74 3,64 1,03 x 0,95 x 0,30 0,95 m 12,5 kg
75-016 1,31 2,43 3,58 4,76 1,31 x 0,95 x 0,30  0,95 m 14,0 kg
75-020 1,59 2,99 4,42 5,88 1,59 x 0,95 x 0,30  0,95 m 15,50 kg

○ ...  this product also functions as a working platform (see image). The platform measures 1,56 m in length with a height of 0,99 m .
According to the current standard, this variation is only licensed in conjunction with the base plate 19-074!

Model No. Name
19-074 Base Plate for Type is 75-012

75-106 Foldable Ladder Addition for Type 75-000
75-106

Ladder Additions for Type 75-000

We offer both foldable and rigid additions that are suitable for a variety of needs.

  • Built with two sets of plastic coated steel rung hooks with a lifting lock system
  Leiter gerade Leiter geklappt
Model No. Ladder Length in m Weight
  expanded folded approx.
75-006 2,00   5,0 kg
75-106 2,00 1,00 6,0 kg
