INDUSTRIAL - Leaning & Step Ladders
TYPE 50 Aluminium Leaning Ladder
Tested and manufactured according to ÖNORM EN 131 standards
- Includes plastic anti-slip safety feet and top end-caps to ensure firm positioning during use
- Distance between rungs is 28 cm
- Total ladder width of approx. 36 cm
- Models 50-011 to 50-026 are built with a Stabiliser bar
| Model No. | Ladder length | Stabiliser Bar | Approx. weight |
| 50-006 | 1,95 m | - | 3,5 kg |
| 50-007 | 2,23 m | - | 4,9 kg |
| 50-008 | 2,51 m | - | 4,5 kg |
| 50-009 | 2,79 m | - | 5,0 kg |
| 50-010 | 3,07 m | - | 5,5 kg |
| 50-011 | 3,35 m | 0,8 m | 6,1 kg |
| 50-012 | 3,61 m | 0,8 m | 8,0 kg |
| 50-013 | 3,89 m | 0,8 m | 8,7 kg |
| 50-014 | 4,17 m | 0,8 m | 9,3 kg |
| 50-015 | 4,45 m | 1,0 m | 9,9 kg |
| 50-016 | 4,73 m | 1,0 m | 10,5 kg |
| 50-018 | 5,29 m | 1,0 m | 11,8 kg |
| 50-020 | 5,85 m | 1,0 m | 13,1 kg |
| 50-022 | 6,48 m | 1,2 m | 15,6 kg |
| 50-024 | 7,04 m | 1,2 m | 17,0 kg |
| 50-026 | 7,60 m | 1,2 m | 18,6 kg |

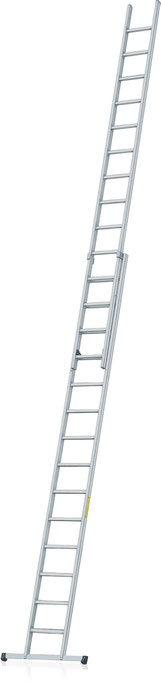

TYPE 51 Aluminium Extension Ladder 2-part
Tested and manufactured according to ÖNORM EN 131 standards
- Plastic-coated steel rung hooks and locking tabs secure sections together during use (see image)
- Built with heavy-duty guide brackets
- Total ladder width of approx. 43cm
|
|
|||
| Model No. | Length - Closed | Length - Extended | Stabiliser Bar | Approx. weight |
| 51-006 | 1,97 m | 3,12 m | 0,8 m | 8,0 kg |
| 51-008 | 2,53 m | 4,24 m | 1,0 m | 11,0 kg |
| 51-010 | 3,09 m | 5,36 m | 1,0 m | 13,0 kg |
| 51-012 | 3,65 m | 6,21 m | 1,2 m | 15,0 kg |
| 51-014 | 4,23 m | 7,34 m | 1,2 m | 20,0 kg |
| 51-016 | 4,79 m | 8,11 m | 1,2 m | 25,0 kg |
| 51-018 | 5,35 m | 9,24 m | 1,2 m | 29,0 kg |
TYPE 56 Aluminum Extension Ladder 2-part, rope operated
Tested and manufactured according to ÖNORM EN 131 standards
- Fully-automated plastic-coated steel rung hooks secure sections together during use (see image)
- Built with heavy-duty guide brackets on both upper and lower sections
- Includes rope and wall-running wheels for smooth and easy extension (see image)
- Total ladder width of approx. 43 cm
|
|
|
|||
| Model No. | Length closed | Length extended | Stabiliser Bar | Approx. weight |
| 56-010 | 3,10 m | 5,20 m | 1,0 m | 17,0 kg |
| 56-012 | 3,67 m | 6,22 m | 1,0 m | 18,0 kg |
| 56-014 | 4,23 m | 7,34 m | 1,2 m | 21,0 kg |
| 56-016 | 4,79 m | 8,11 m | 1,2 m | 26,0 kg |
| 56-018 | 5,35 m | 9,24 m | 1,2 m | 30,0 kg |
| 56-020 | 5,91 m | 9,84 m | 1,2 m | 35,0 kg |
| 56-022 ▲ | 6,47 m | 11,21 m | - | 38,0 kg |
| 56-024 ▲* | 7,03 m | 12,12 m | - | 41,0 kg |
| 56-026 ▲* | 7,59 m | 13,23 m | - | 44,0 kg |
| 56-028 ▲* | 8,15 m | 14,35 m | - | 48,0 kg |
* Only available by order
Note
In order to comply with safety standards, additional safety Stabilisers are required for models marked with ▲. The appropriate Stabiliser for each of these ladders can be found in the table below.
In order to comply with safety standards, additional safety Stabilisers are required for models marked with ▲. The appropriate Stabiliser for each of these ladders can be found in the table below.

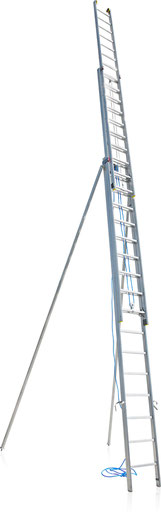

TYPE 57 Aluminum Extension Ladder 3-part, rope operated
Tested and manufactured according to ÖNORM EN 131 standards
- Built with automatic aluminium rung safety lock (see image)
- Equipped with two parallel running rope operated extension systems. The lower pulley system uses a non-slip plastic rope, while the upper pulley system uses a galvanized steel rope (see images)
- Heavy-duty guide brackets and wall-running wheels allow for smooth and easy extension
- Total ladder width of approx. 50 cm
|
|
|||
| Model No. | Length closed | Length extended | Stabiliser Bar | Approx. weight |
| 57-010 | 3,27 m | 7,20 m | 1,2 m | 27,0 kg |
| 57-012 | 3,83 m | 8,88 m | 1,2 m | 32,0 kg |
| 57-014 | 4,41 m | 10,56 m | 1,2 m | 36,0 kg |
| 57-016 ▲ | 4,97 m | 12,24 m | - | 41,0 kg |
| 57-018 ▲ | 5,52 m | 13,92 m | - | 48,0 kg |
| 57-020 ▲ | 6,08 m | 15,07 m | - | 56,0 kg |
| 57-022 ▲* | 6,64 m | 16,23 m | - | 60,0 kg |
| 57-024 ▲* | 7,20 m | 17,91 m | - | 64,0 kg |
* Only available by order
Note
In order to comply with safety standards, additional safety Stabilisers are required for models marked with ▲. The appropriate Stabiliser for each of these ladders can be found in the table below.
In order to comply with safety standards, additional safety Stabilisers are required for models marked with ▲. The appropriate Stabiliser for each of these ladders can be found in the table below.
no image
Stabilisers for Type 56 and Type 57 ▲
to comply with the regulations, the ladders marked with a ▲ must have stabilisers.
| Model No. | Approx. weight | Suitable for Ladder Model No. |
| 56-001 | 3,90 kg | 56-022 |
| 56-002 | 4,80 kg | 56-024 |
| 56-003 | 5,10 kg | 56-026 |
| 56-004 | 5,10 kg | 56-028 |
| 57-001 | 3,50 kg | 57-016 |
| 57-002 | 3,90 kg | 57-018 |
| 57-003 | 3,90 kg | 57-020 |
| 57-004 | 4,50 kg | 57-022 |
| 57-005 | 4,80 kg | 57-024 |
TYPE 52 Aluminium Step Ladder
Tested and manufactured according to ÖNORM EN 131 and ÖNORM Z 1501 standards
- Universal ladder for professional and everyday use
- Built with strong and secure aluminium joints
- Distance between rungs is 30 cm
- Distance between the top round, non-mountable rungs is 32 cm, which allows for comfortable standing
- Includes tear-resistant nylon opening restraints. Option for galvanized chain upon request (ideal for welding work)
| Model No. | Ladder Length | Approx. weight |
| 52-004 | 1,37 m | 5,0 kg |
| 52-005 | 1,67 m | 6,0 kg |
| 52-006 | 1,97 m | 7,0 kg |
| 52-007 | 2,27 m | 8,0 kg |
| 52-008 | 2,57 m | 9,5 kg |
| 52-009 | 2,87 m | 11,5 kg |
| 52-010 | 3,17 m | 14,0 kg |
| 52-011 | 3,47 m | 16,0 kg |
| 52-012 | 3,77 m | 17,0 kg |
| 52-013 | 4,07 m | 19,0 kg |
| 52-014 | 4,37 m | 20,0 kg |
| 52-016 | 4,97 m | 25,0 kg |
| 52-018 | 5,57 m | 28,0 kg |
| 52-020 | 6,17 m | 35,0 kg |
Ladder Leveler
- Allows for ladder use on stairs or uneven ground
- Uses duel clamps for easy attachment without the use of tools
| Model No. | Size |
Suitable for Ladder Model No. |
| 19-520 | 60 mm | 52-009 to 52-018, as well as R-300 |
| 19-521 | 50 mm | 55-004 to 52-008 |
| 19-522 | 70 mm | 52-020 |
TYPE 55 Aluminium Step Ladder
- Extendable on both sides
- Perfect for use on stairs
- Stabiliser bars located on both sides for maximum stability
- Includes plastic anti-slip safety feet to ensure firm positioning during use
- Uses a continuous patent joint system
- Built with plastic-coated metal rung hooks
- Includes tear-resistant nylon opening restraints
- Distance between rungs is 28 cm
|
|
|||
| Art. Nr. | Length folded | Length extended | Stabiliser Bar | Approx. weight |
| 55-006 | 1,97 m | 3,12 m | 0,8 m | 18 kg |
| 55-008 | 2,53 m | 4,25 m | 0,8 m | 23 kg |
| 55-010 | 3,09 m | 5,05 m | 1,0 m | 27 kg |
| 55-012 | 3,67 m | 6,17 m | 1,0 m | 33 kg |
