TELESTEPS-ladders

Telescope ladders - TELESTEPS

  • Compact and lightweight for easy storage and transportation, while also being safe and stable to climb
  • Made of high quality anodized aluminum with fibreglass reinforced plastic fittings
  • Wide treads for comfortable standing, even over long periods of time
  • Simple and safe unlocking
  • Rubber anti-slip safety feet are built at a 75° angle for maximum floor grip and stability

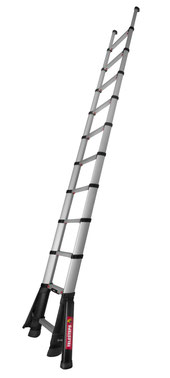

75-320S Telescopic Ladder TELESTEPS Leaning Ladder
75-320S

TYPE 75-320 Telesteps - Leaning Ladder

  • tested and manufactured according to ÖNORM EN 131
  • 50 mm rung width
  • Depending on the version, when height is more than 3.0 m, ladders are provided with supports or cross feet to increase stability
Model No. Rungs Length in m Width Weight
  Amount folded

extended

  approx.
75-321 10 0,81 m 3,00 m 0,47 m 10,5 kg
75-320S* 11 0,87 m 3,50 m 0,55 m 15,0 kg
75-320F° 11 0,88 m 3,50 m 0,48 m 14,5 kg
75-323S* 13 0,93 m 4,10 m 0,56 m 17,4 kg

* ... Model with foldable supports on the ladder base (see picture)

° ... Model with cross base, discontinued item

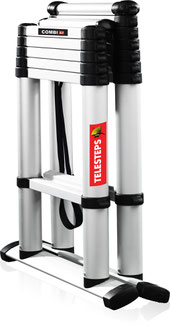

75-326 telescope multipurpose ladder - TELESTEPS
75-326

TYPE 75-320 Telesteps - Combination Ladder

Tested and manufactured according to ÖNORM EN 13

  • Tested and manufactured according to ÖNORM EN 131
  • For all spatial conditions
  • Tread width of 90 mm
  • Accessible from both sides
    Leiter eingeschoben Leiter ausgeschoben
Model No. Rungs Height in m Width Weight
  Amount folded

extended

  approx.
75-326 6+2 0,71 m 2,30 m 0,69 m 14,4 kg
75-328 * 8+2 0,78 m 3,00 m 0,77 m 19,5 kg

* Only available by order


TYPE 75-320 Telesteps - Solid Platform

The ideal platform for people working on the same area over a long period of time. It is small and compact for storage as well as transportation and with its telescopic function, the platform is perfect for narrow spaces. A simple & safe locking system guarantees easy handling.

  • Compact and easy to transport, with integrated carrying handles
  • Wide steps – Ergonomic and comfortable to stand on for long periods of time
  • Made of high quality, anodized aluminum with glass fiber reinforced plastic fittings
Model No. Rungs Height in m Width of steps Packing Measurements Weight
  Amount A

B

C

(m, L x B x H)  (m, L x W x H)  approx.
75-318 3 0,51 m 0,68 m 0,88 m 65 mm 0,74 x 0,28 x 0,62 18,5 kg

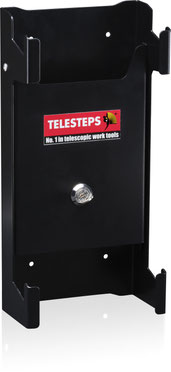

75-331 Wall-Mount for TELESTEPS Ladders, locakable #badgesmall{New 2020}
75-331

Accessories for TELESTEPS Ladders

Model No. Details
75-330 Wall-Mount for 75-321, 75-320F and 75-323F
75-331 Wall-Mount for 75-321, 75-320F and 75-323F, lockable
75-332 Safety feet and ladder leveler for 75-321, adjustable in height and angle
EK1921 Rubber anti-slip feet for ladder 75-320
EK1924 Rubber anti-slip feet for ladder 75-323
EK1922 Rubber anti-slip feet for 75-326 and 75-328
EK1923 Tool tray for ladders 75-326 and 75-328
