Aluminium Platform Ladders

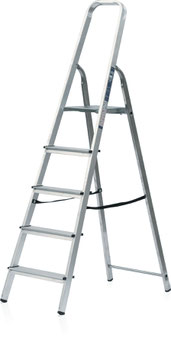

72-005 Plattform Height
72-005

TYPE 72 Platform ladder with treads

Tested and manufactured according to ÖNORM EN 131 standards

  • Ideal ladder for household uses
  • Extremely lightweight
  • Models 72-006 to 72-008 come with a chain or nylon opening restraint
  • Tread width of 80mm
Model No. Ladder Length Plattform Height approx. Weight
 72-003  1,30 m 0,67 m  3,4 kg
 72-004 1,50 m 0,90 m  3,9 kg
  72-005  1,70 m 1,11 m 4,5 kg
 72-006  2,00 m 1,35 m  5,7 kg
 72-007 2,10 m 1,56 m  6,5 kg
  72-008 2,40 m 1,78 m  7,2 kg

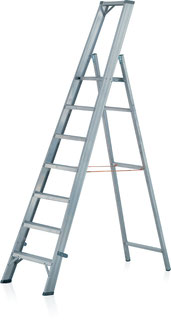

73-007 Platform Ladder
73-007

TYPE 73 Platform Ladder with treads

Tested and manufactured according to ÖNORM EN 131 standards

  • Access from one side of the A-frame
  • High guard beam provides a secure working space
  • Large standing platform locks the ladder into working position, ensuring both long-standing comfort and safety (see image)
  • Models 73-006 to 73-012 are built with additional tear resistant spreading restraints
  • Tread width of 85 mm
Model No. Ladder Length Platform Height aprox. Weight
 73-003  1,44 m 0,70 m  5,0 kg
 73-004 1,69 m 0,93 m  6,0 kg
 73-005  1,94 m 1,17 m 7,0 kg
 73-006  2,19 m 1,40 m  8,0 kg
 73-007 2,44 m 1,64 m  9,0 kg
 73-008 2,69 m 1,88 m  10,0 kg
73-009 2,94 m 2,13 m  12,0 kg
 73-010 3,19 m 2,36 m 12,5 kg
 73-012 3,69 m 2,84 m 15,0 kg
